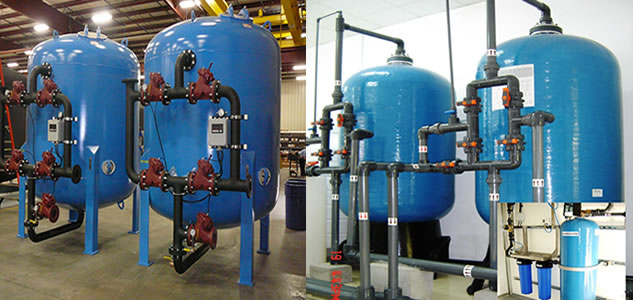

Turraco is proud to bring you its cost effective and quality range of dual media filtration systems for various water filtration needs. They are available in three major models, namely series S, M, and L. The trio series of dual media filters are now available in Nigeria and across Africa. It covers different flow rates, ranging from 0.8 cubic meters (800 litres) to 50 cubic meters (50,000 litres) per hour.

Our range of dual media filtration systems are widely used in water filtration for sediment and TSS removal, and in wastewater filtration.

Product Details

1. S Series
Capacity Range: 0.5 m3/h to 15.0 m3/h
The S series offers wide range of micron cartridge filtration system to filter out particulates ranging from 0.2 to 100 microns.

Systems made of pleated, melt blown and wound PP cartridges or SS cartridges with housings in SS 316 or Poly propylene suitable to handle flow rates up to 15 m3/h are available. New series of filters featuring multiple cartridges and combination filter composed of an outer layer of poly propylene with a melt blown polypropylene core are also available to handle varied solid loading at minimal pressure drops.

Features
• Requires no backwash and hence no down time.
• Cartridge self contained in FRP enclosure for easy replacement.
• Product suitable for potable application.
• Can be used to treat corrosive fluids and oxidizing agents.

2. M Series
Capacity Range: 0.8 m3/h to 12.5 m3/h
The M series is designed to meet the demands of large commercial and industrial water and wastewater filtration needs. The multi-graded sand media topped by anthracite, offers excellent suspended solid removal efficiencies at lower pressure drops across the filter media.

Features
• Effective depth filtration process with low pressure drop.
• Optimized for both water and wastewater application.
• Dedicated control panel and feed pump for water treatment units.
• Non Corrosive vessel, water distribution and water collection system for longer service time.

3. L Series
Capacity Range: 12.6 m3/h to 50.0 m3/h
The L series features FRP vessels with top and side manhole that enable easy replacement of filter media. Designed for easy operation and maintenance, the L series DMF systems can handle harsh and aggressive water and effluent streams that are to be filtered in Industrial applications.

Features
• Easy replacement of media through easy access ports for media removal and top up
• Designed to handle varying flow rates and solids loading rates
• Optional variant for auto backwash by sensing differential pressure between the inlet and the outlet.

For more information about our water dual media filtration systems and how you can purchase one from us, please call the number above or send us an email or click below to contact us.
