nigeria water electro static deionization system for ion removal in water

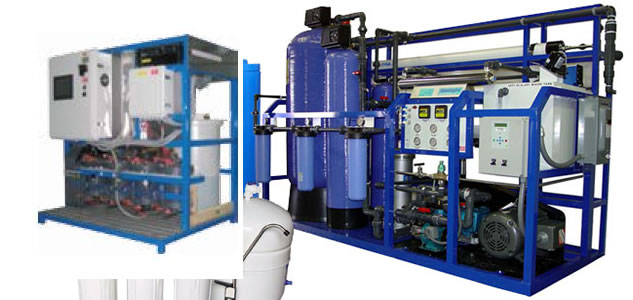

Water Electro Static Deionization (ESD) System

The Turraco-ESD system is a deionization technology in which by applying a low voltage of 1.6VDC, the positive and the negative ions in water are attracted towards the electrodes and away from the water to remove its ion content. Turraco-ESD system consumes only a third of energy as that consumed by a reverse osmosis RO system.

In addition to being an innovative alternative to RO technology, Turraco-ESD has got increased tolerance to organics and high rejection capabilities for arsenic, fluoride, other metals and nitrates.

Features
• Almost one third of power consumption as that consumed by reverse osmosis technology.
• No components to replace for at least 7 years.
• Treatment process can be configured to required output conductivity levels.
• Recovery as high as 97% achievable.
• High water recoveries coupled with high ion removal efficiencies.
• No sustained concentrate leading to the formation of precipitates and fouling.
• Monovalent design targets monovalent ions like nitrate, fluoride , chloride, perchloride and cyanide.
• Easy integration with renewable energy sources such as solar and wind turbines.
• Reliable system because it has few moving components.
• High tolerance to silica.

Applications
Drinking water / Ground water treatment
Removal of fluoride
Removal of nitrate
Removal of arsenic
Reduction of total dissolved solids (TDS)
Disinfection

Industrial Applications
Demineralization of boiler feed water
Heat exchangers
Treated wastewater recycling and reuse

Highlights of Turraco-ESD technology
• Salt Rejection
Salt rejection can be adjusted to vary from 60% to 90% depending on the end use application
• Water Recovery
Water recovery can be as high as 95% depending on level of treatment required
• Low Energy Consumption
Energy consumed varies between 0.2 to 0.8 kWh / m3 which is the lowest in desalination industry
• Safe Technology
The unit operates on 1.6 VDC and hence does not possess any risk of electrical shock.
• Green product
The unit does not require any regular consumable. No hazardous chemicals to be stored and handled.
• Flexible Operation
The Output from the Turraco-ESD unit can be configured as per the required outlet. Units can be put in series or parallel configuration to achieve required flow rate and levels desalination

For more information about Turraco ESD system and how you can purchase one from us, please call the number above or send us an email or click below to contact us.
