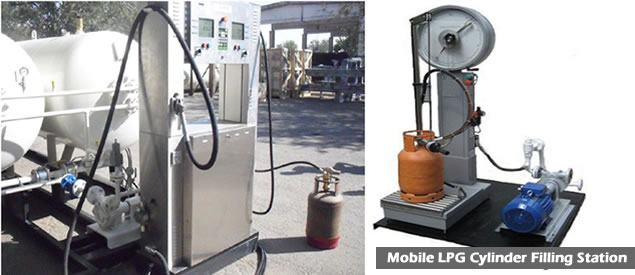

Mini LPG Cylinder Filling Station



...Your mobile Gas Distribution Station & Solution usable anytime and movable anywhere, now available in Nigeria.

Do you want to start a gas distribution and marketing business? Now you can start you business right away with Turraco Mobile LPG Gas Stations.

Our mini gas station is an easy-to-move and directly operational gas distribution solution usable anytime and anywhere. All you need is to get it delivered to your location and filled right away to start your business.

Built in line with prevailing pressure equipment regulation, Turraco skid mounted LPG filling station comprises LPG tank, 6 step LPG moto pump, connecting pipe works, electronic switchboard, electronic scale and two nozzles.

Manufactured in Europe, it is available in 3 cubic meters capacity up to 100 cubic meter capacity.

TECHNICAL PARAMETERS

* Design Code:   AD Merkblatter
* Design Pressure:  17, 5 Kg/cm2
* Test Pressure:   26, 25 Kg/cm2
* Foots:  Saddle type
* Design Temperature:  min -40ºC, max +70ºC
* Material: EN 10028- P 355 GH-P 355 NH
* Thickness: .20 M³ Heads: 14 mm, Body: 12 mm
                    50 M³ Heads: 16 mm, Body: 14 mm
     .............. 100 M³ Heads: 18 mm, Body: 20mm
* Head Type: Elliptical
* Stress Heating: Heads only
* Class Control: TÜV- CE
* X-ray: Lengthwise %100, peripheral %25, T ............ weldings %100
* Penetration: Corner weldings
* Painting: Epoxy primer (150 Um) + Top coat ............... epoxy (100 Um)
* Medium:  Liquefied gas

To have one manufactured for you in line with your specifications, please contact us. For additional information please write us: info@turraco.com or call 0809-888-2022, 0808-228-0014.
